Commercial Customer Usage Tracking for AWS Bedrock Lambda Proxy

Table of Contents

Overview

This document provides a comprehensive guide for implementing commercial customer usage tracking for this AWS Bedrock Lambda Proxy service. The solution leverages AWS API Gateway with a DynamoDB-based token management system to track customer usage with Bearer token authentication, following AWS-native patterns and community standards.

Key Components:

This solution allows you to:

  1. Generate unique Bearer tokens for each customer
  2. Track usage per customer for billing purposes
  3. Implement various pricing models (pay-per-request, tiered, subscription)
  4. Generate detailed usage reports and visualizations

Solution Architecture

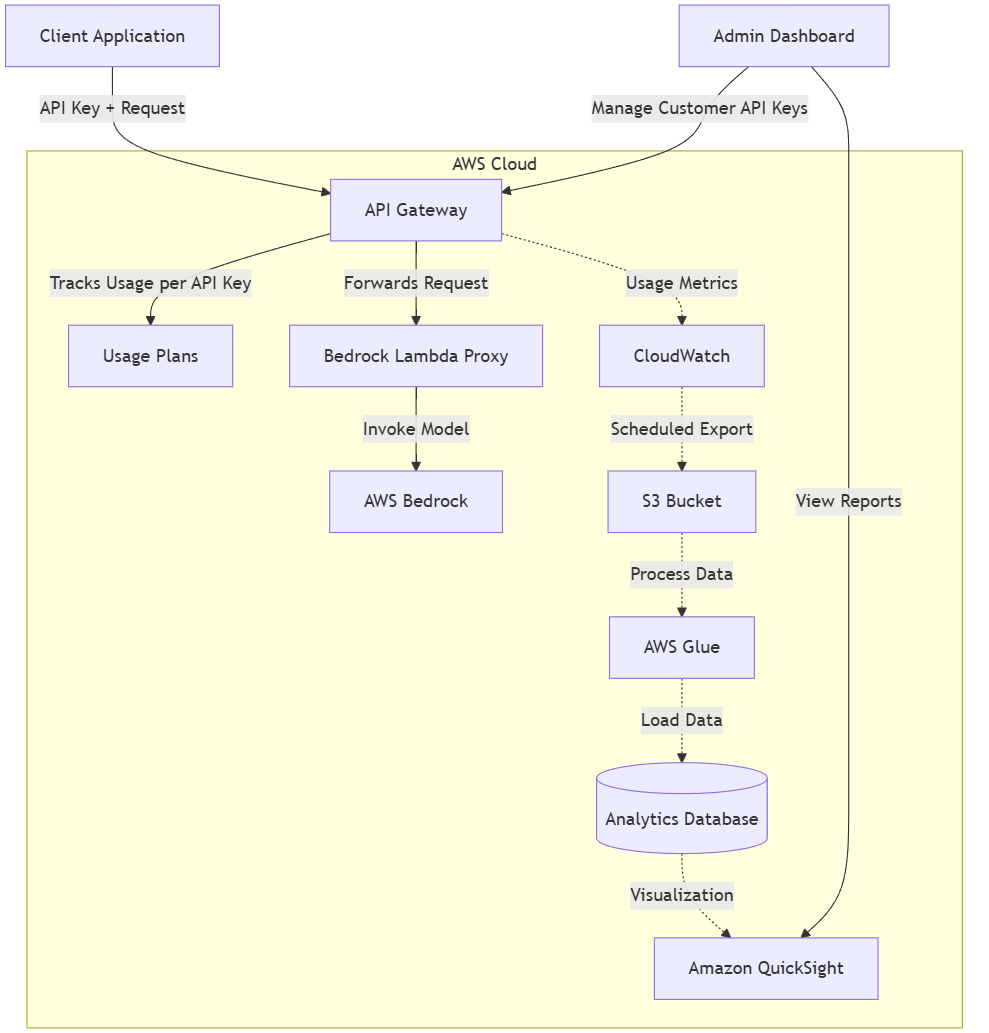

The architecture diagram below illustrates how the components interact:

API Gateway Usage Tracking Architecture

Architecture Components:

Setup Guide

API Gateway Configuration

The api-gateway-setup.sh script automates the creation of:

Setup Steps:

  1. Edit the script to update your region and Lambda ARN:
    # Open the file
nano api-gateway-setup.sh

# Update these values
LAMBDA_ARN="arn:aws:lambda:REGION:ACCOUNT_ID:function:bedrock-proxy"
REGION="us-east-1"  # Your AWS region
  2. Make the script executable and run it:
    chmod +x api-gateway-setup.sh
./api-gateway-setup.sh
  3. Note the API endpoint URL that is output. You’ll need this for client integration.

Customer Management System

The customer-management.py script provides a CLI tool for managing customers and their Bearer tokens.

Setup Steps:

  1. Install the required Python dependencies:
    pip install boto3
  2. Make sure your AWS credentials are configured:
    aws configure
  3. The script will automatically create a DynamoDB table named bedrock_customers on first run.

Analytics Infrastructure

Deploy the CloudFormation template (reporting-setup.yml) to set up the analytics infrastructure:

  1. Deploy the template:
    aws cloudformation create-stack \
  --stack-name bedrock-usage-analytics \
  --template-body file://reporting-setup.yml \
  --capabilities CAPABILITY_IAM

  2. Once deployment is complete, note the S3 bucket name and Glue database name from the outputs.

  3. Set up Amazon QuickSight (if not already configured):
    • Sign up for QuickSight in the AWS Console
    • Create a new dataset using AWS Glue as the source
    • Connect to the bedrock_usage_db database

Customer Management Workflow

Adding a New Customer

When onboarding a new customer:

  1. Create a Bearer token for the customer:
    python customer-management.py create \
  --name "Customer Name" \
  --email "customer@example.com"

  2. The script will output a customer ID and Bearer token. Provide this token to your customer along with integration instructions.

  3. Optionally, generate a more secure token:
    # Generate a secure token
TOKEN=$(openssl rand -base64 32)

# Create customer with specified token
python customer-management.py create \
  --name "Customer Name" \
  --email "customer@example.com" \
  --token "$TOKEN"

Listing Customers

To view all registered customers:

python customer-management.py list

This command displays all customers stored in your DynamoDB table, including their customer IDs, names, and email addresses.

Checking Customer Usage

To retrieve usage statistics for a specific customer:

python customer-management.py usage \
  --customer-id "12345678-1234-1234-1234-123456789012" \
  --start-date "2023-04-01" \
  --end-date "2023-04-30"

This retrieves the number of API calls made by the customer within the specified date range, useful for billing purposes.

Reporting and Billing

The reporting infrastructure automatically:

  1. Exports daily usage data from CloudWatch Logs to the S3 bucket (runs at 1:00 AM UTC)
  2. Updates the Glue catalog (runs at 2:00 AM UTC)
  3. Makes the data available for querying through Athena or QuickSight

Creating Dashboards

In Amazon QuickSight:

  1. Create a new analysis using the bedrock_usage_db database
  2. Build visualizations such as:
    • API calls per customer per day
    • Total usage by customer (monthly view)
    • Usage trends over time
    • Most active customers

Billing Process Example

A typical monthly billing workflow:

  1. At the end of each billing period, query the usage data:
    # Using the script
python customer-management.py usage \
  --customer-id "CUSTOMER_ID" \
  --start-date "BILLING_START" \
  --end-date "BILLING_END"

# Or query the data in Athena/QuickSight
  2. Apply your pricing model:
    • Pay-per-request: Multiply requests by your per-request rate
    • Tiered pricing: Apply different rates based on usage volume
    • Subscription + overage: Charge fixed amount plus overage fees
  3. Generate invoices based on the calculated amounts

Client Integration

Javascript

// JavaScript Example (Browser/Node.js)
async function callBedrockAPI(prompt) {
  const apiEndpoint = 'https://your-api-gateway-url/prod/bedrock';
  const authToken = 'your-customer-token-here';

  const response = await fetch(apiEndpoint, {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      'Authorization': `Bearer ${authToken}`
    },
    body: JSON.stringify({
      // Required: specify which model to use
      modelId: 'anthropic.claude-3-sonnet-20240229-v1:0',

      // Claude-specific parameters
      anthropic_version: 'bedrock-2023-05-31',
      max_tokens: 1000,
      messages: [
        {
          role: 'user',
          content: [
            {
              type: 'text',
              text: prompt
            }
          ]
        }
      ]
    })
  });

  if (!response.ok) {
    throw new Error(`API request failed: ${response.status}`);
  }

  return await response.json();
}

// Example usage
// callBedrockAPI("What is the capital of France?")
//   .then(result => console.log(result))
//   .catch(error => console.error(error));

Python

import requests

def call_bedrock_api(prompt):
    api_endpoint = "https://your-api-gateway-url/prod/bedrock"
    auth_token = "your-customer-token-here"

    headers = {
        "Content-Type": "application/json",
        "Authorization": f"Bearer {auth_token}"
    }

    payload = {
        "modelId": "anthropic.claude-3-sonnet-20240229-v1:0",
        "anthropic_version": "bedrock-2023-05-31",
        "max_tokens": 1000,
        "messages": [
            {
                "role": "user",
                "content": [
                    {
                        "type": "text",
                        "text": prompt
                    }
                ]
            }
        ]
    }

    response = requests.post(api_endpoint, headers=headers, json=payload)
    response.raise_for_status()  # Raise exception for 4XX/5XX responses

    return response.json()

# Example usage
# try:
#     result = call_bedrock_api("What is the capital of France?")
#     print(result)
# except Exception as e:
#     print(f"Error: {e}")

cURL

curl -X POST https://your-api-gateway-url/prod/bedrock \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer your-customer-token-here" \
  -d '{
    "modelId": "anthropic.claude-3-sonnet-20240229-v1:0",
    "anthropic_version": "bedrock-2023-05-31",
    "max_tokens": 1000,
    "messages": [
      {
        "role": "user",
        "content": [
          {
            "type": "text",
            "text": "What is the capital of France?"
          }
        ]
      }
    ]
  }'

Maintenance and Operations

Regular Maintenance Tasks

  1. Bearer Token Rotation: Implement a policy for rotating tokens periodically:
    # Process for rotating a customer's token
# 1. Generate a new secure token
NEW_TOKEN=$(openssl rand -base64 32)

# 2. Update the token in your database
python customer-management.py update-token \
  --customer-id "CUSTOMER_ID" \
  --token "$NEW_TOKEN"

# 3. Provide to customer
# 4. After customer confirms migration, invalidate old token
  2. Usage Monitoring: Periodically review usage patterns and set appropriate limits in the Lambda function:
    # Update customer rate limits in DynamoDB
python customer-management.py update-limits \
  --customer-id "CUSTOMER_ID" \
  --daily-limit 1000
  3. Monitoring and Alerts: Set up CloudWatch alarms for:
    • High error rates
    • Excessive usage
    • Unusual usage patterns

Troubleshooting Common Issues

  1. Authentication Issues:
    • Verify the Bearer token is valid and correctly formatted
    • Check if the customer’s token has been rotated
    • Ensure the Authorization header is being correctly passed through API Gateway
  2. Usage Data Not Appearing:
    • Check CloudWatch logs for the export Lambda function
    • Verify the Glue crawler is running successfully
    • Check IAM permissions
  3. High Latency:
    • Check Lambda concurrency limits
    • Monitor Bedrock model response times
    • Consider adjusting Lambda memory allocation

Security Best Practices

  1. Token Management:
    • Generate tokens using cryptographically secure methods
    • Never store tokens in code repositories
    • Implement token rotation procedures
    • Use a secure method to distribute tokens to customers
  2. Access Controls:
    • Implement least privilege IAM policies
    • Restrict access to the customer management script
    • Use AWS CloudTrail to audit administrative actions
  3. Data Protection:
    • Encrypt data at rest in S3 and DynamoDB
    • Implement TLS for all communications
    • Consider implementing VPC endpoints for AWS services

Further Enhancement

future-enhancements.md for consideration. This includes e.g.:

Note: This solution follows AWS best practices and community standards for implementing a commercial model for AWS Bedrock access. It is designed to be low-maintenance, scalable, and compatible with your existing Lambda function’s Bearer token authentication.
